flexographic printers introduction
Flexographic printing machines transfer ink to substrates through flexible printing plates and are widely used in packaging, labels, paper products and other fields. We have 1-6 colors for you to choose from, our machine can print non-woven, woven bag, paper, paper bag, plastic bag, pizza box, etc.
Features of flexographic printers
1. Environmentally friendly
Low-pollution ink:
Mostly use water-based ink or UV-curable ink to reduce volatile organic compounds (VOCs) emissions and meet environmental regulations.
Recyclable materials:
Printing plates (rubber/resin), paper and other materials are easy to recycle and reuse, which is in line with the trend of green printing.
2. High adaptability
Wide range of substrates:
Can print paper, plastic film, corrugated box, label, metal foil and other materials
High pattern complexity:
Support fine dots and gradient effects (resolution can reach 2000dpi), meeting the needs of high-end packaging design.
3. Economical and efficient
Low plate making cost:
Flexo printing plates have a short production cycle and low cost, especially suitable for short-run printing (small batch orders).
High-speed continuous operation:
The production speed can reach tens of thousands of prints per hour, suitable for mass production (such as food packaging lines).
4. Convenient operation
Quick plate change:
Simple plate replacement (no complex debugging required), support fast switching of multi-color overprinting
5. Long-life printing plates
Durability:
Rubber or photosensitive resin printing plates are highly wear-resistant and can last up to hundreds of thousands of prints, reducing long-term costs.
Parameters of flexographic printers
Hot Tags: flexographic printing machine, China flexographic printing machine manufacturers, suppliers, Plastic Resin Plate Making Machine, printing machinery, Flexographic Printing Machine
Parameter of plastic bag printer machine
|
Model |
YZYS-1 |
YZYS-2 |
YZYS-3 |
YZYS-4 |
YZYS-5 |
|
Max enter width |
840mm |
840mm |
840mm |
840mm |
840mm |
|
Max printing width |
650mm |
650mm |
650mm |
650mm |
650mm |
|
Max printing length |
1200mm |
1200mm |
1200mm |
1200mm |
1200mm |
|
Rubber letterpress thickness |
4-6mm |
4-6mm |
4-6mm |
4-6mm |
4-6mm |
|
Printing roller diameter |
420mm |
420mm |
420mm |
420mm |
420mm |
|
Printing speed pcs/h |
1500-3500 |
1500-3500 |
1500-3500 |
1500-3500 |
1500-3500 |
|
Color |
1 |
2 |
3 |
4 |
5 |
|
Motor power |
0.75kw |
1.5kw |
1.5kw |
2.2kw |
3kw |
|
Dimension(mm) |
1000*1450*1200 |
1500*1450*1200 |
2100*1450*1200 |
2800*1450*1200 |
3500*1450*1200 |
|
Weight |
700kg |
900kg |
1100kg |
1300kg |
1500kg |
flexo printing machines detail picture
Specific application of flexo printing machines
- Packaging industry: cartons, paper bags, beverage labels, food packaging boxes.
- Label printing: self-adhesive labels, product labels, logistics labels.
- Film printing: plastic bags, plastic containers, protective films for electronic products.
- Special printing: corrugated cardboard, metal foil composite materials.

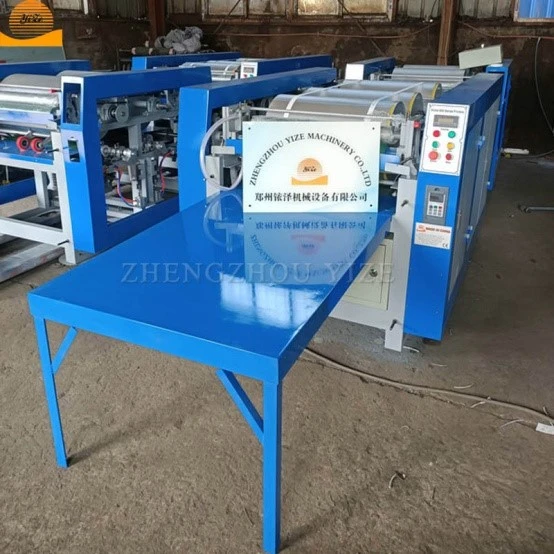

Display of flexo printing machines
kraft bag printing machine CE
FAQ about kraft bag printing machine
Q: What kind of ink does the pp bag printing machine use?
A: Water-based ink: environmentally friendly, suitable for paper and cardboard.
Solvent-based ink: suitable for some special materials
Q: What is the printing speed of the printing machine on paper bags?
A: Usually 80 meters/minute, the specific speed depends on the equipment model and printing materials.
Q: How to choose a suitable bag printing machine?
A: Printing width: Select the appropriate width according to product requirements.
Number of printing colors: Select a single-color or multi-color printing press according to design requirements.
Q: Can a printing on bags machine perform multi-color printing?
A: Yes, paper bag printer can perform multi-color printing. We support up to 6 colors. Multi-color woven bag printer are usually equipped with multiple printing units, each unit is responsible for one color, and multi-color printing is achieved through precise overprinting technology.
Our services
|
MOQ |
Usually 1 set, or based your order,Preferential wholesale price. |
|
Voltage |
110V /220V /380V /415V, 50/60 HZ Single/Three phase , Customize the voltage according to your local voltage. |
|
Guarantee |
Quality guarantee term is for one year, During guarantee period, free technical support and free spare parts supply. |
|
Payment term |
T/T, Credit card, Western Union, RMB , Alipay, Wechat, Cash, E-checking, MoneyGram, L/C, etc. |
|
Documents offer |
By express:express waybill |
|
By air:airway bill |
|
|
By sea:B/L, commercial invoice, packing list, sales contract, CO, FE, FTA or as your request. |
|
|
How to install and maintain the machine |
we can teach you install or maintain the machine by video, email ,pictures.....if large project , we can arrange our engineer help you to install or maintain it in your country. If you need spare parts, we can supply for free or cost price, you pay express cost. |
|
Assignment of engineers and training |
we can supply manual book, work video, install video, pictures first, we can also assign our engineers to go abroad for installing or training machines for our users. |
