rewinding and Slitting machine introduction
Fabric slitter machine is a device used to slit wide coils into narrow coils and rewind them.
It is mainly composed of an unwinding device, a slitting device, a rewinding device, a tension control system, etc.
The unwinding device is used to support and deliver the raw material coils.
The slitting device uses a cutter to cut the wide coils according to the set width.
The rewinding device winds the slit narrow coils into small rolls.
The tension control system ensures that the coils maintain appropriate tension during the slitting and rewinding process to ensure slitting accuracy and rewinding quality.
The equipment has the characteristics of high efficiency, precision, and high degree of automation, which can effectively improve production efficiency and product quality.
Features of rewinding and Slitting machine
- Efficient slitting: It can quickly and accurately slit wide rolls into multiple narrow rolls.
- Automatic rewinding: The narrow rolls after slitting can be automatically rewound into rolls for subsequent use.
- High-precision cutting: Servo motors or CNC systems are used to ensure accurate cutting width and length.
- Versatility: It can handle a variety of materials such as paper, film, cloth, metal foil, etc.
- High degree of automation: It is equipped with automatic feeding, automatic slitting, automatic rewinding and automatic deviation correction functions.
- Customization: The cutting width, length and rewinding method can be flexibly adjusted according to customer needs.
Hot Tags: rewinding slitting machine, China rewinding slitting machine manufacturers, suppliers, stationary textile machinery, textile machinery for brand building, textile machinery for improvement, textile machinery for lace, textile machinery for upgrading standards, versatile textile machinery
Parameters of rewinding and Slitting machine
|
Model |
YZFF-100 |
YZFF-120 |
YZFF-140 |
YZFF-160 |
|
Slitting width |
20-1000mm |
20-1200mm |
20-1400mm |
20-1600mm |
|
Cutting thickness |
1-20mm(customizable) |
|||
|
Cutting speed |
0-100m/minute |
|||
|
Power |
4.5KW |
|||
|
Size |
1800*1400*1300mm |
2000*1500*1300mm |
2000*1700*1300mm |
2000*1900*1300mm |
|
Weight |
700kg |
800kg |
900kg |
1000kg |
|
If you need more models please contact us |
||||

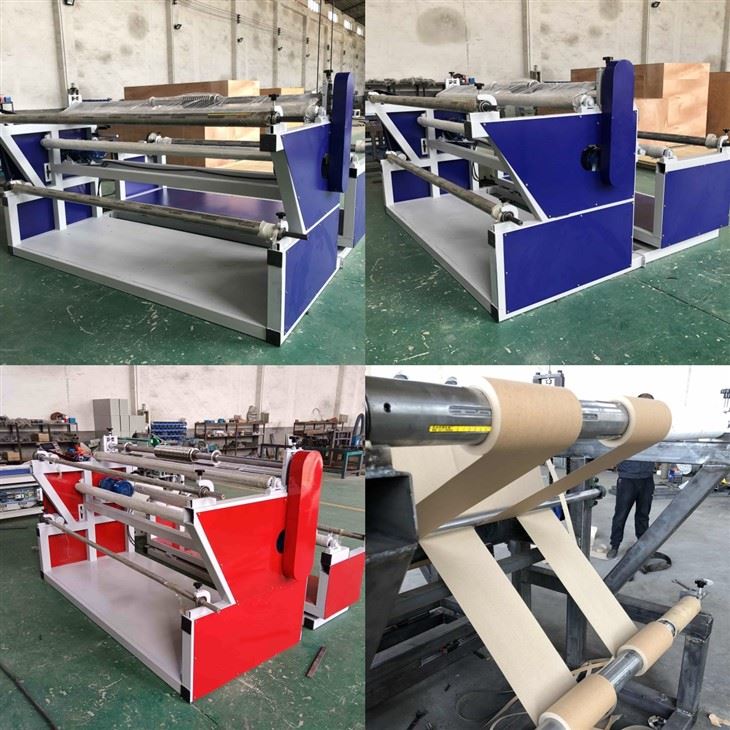

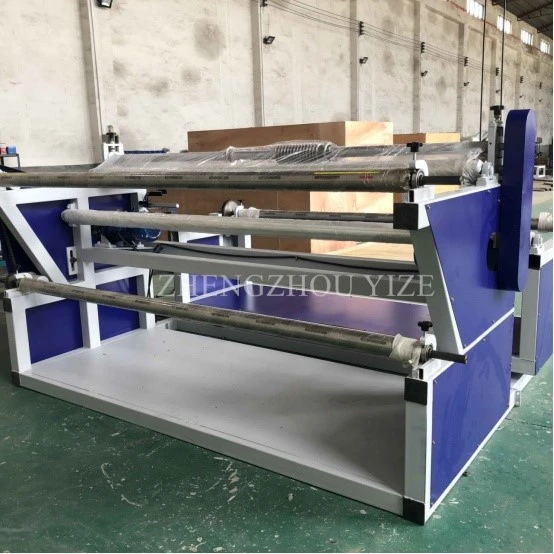

rewinding machine detail picture
Specific application of rewinding Slitting machine
The slitting and rewinding machine can slit wide rolls into narrow rolls and rewind them, and is used in many industries:
- Papermaking industry: slitting base paper into small rolls such as toilet paper and packaging paper.
- Packaging industry: slitting plastic film, aluminum foil and other packaging material rolls.
- Plastic industry: slitting wide plastic rolls into films or sheets used in agriculture, construction and other fields.
- Textile industry: slitting chemical fiber filaments, yarns, etc. for subsequent processing.
- Electronics industry: slitting and rewinding electronic-grade film materials such as lithium battery separators and electronic tapes.
rewinding machine finished product display
rewinding Slitting machine packaging
Standard wooden box
FAQ about rewinding Slitting machine
Q: Can I customize the slitter rewinder?
A: We support customization according to customer needs:
Cutting width and length.
Coil width.
Automation function.
Special material handling.
Q: What materials can the slitting and rewinding machine handle?
A: It can handle a variety of materials, such as paper, plastic film, aluminum foil, chemical fiber filament, yarn, composite materials, etc. However, different materials require the selection of appropriate knives and process parameters to ensure the quality of slitting and rewinding.
Our services
|
MOQ |
Usually 1 set, or based your order,Preferential wholesale price. |
|
Voltage |
110V /220V /380V /415V, 50/60 HZ Single/Three phase , Customize the voltage according to your local voltage. |
|
Guarantee |
Quality guarantee term is for one year, During guarantee period, free technical support and free spare parts supply. |
|
Payment term |
T/T, Credit card, Western Union, RMB , Alipay, Wechat, Cash, E-checking, MoneyGram, L/C, etc. |
|
Documents offer |
By express:express waybill |
|
By air:airway bill |
|
|
By sea:B/L, commercial invoice, packing list, sales contract, CO, FE, FTA or as your request. |
|
|
How to install and maintain the machine |
we can teach you install or maintain the machine by video, email ,pictures.....if large project , we can arrange our engineer help you to install or maintain it in your country. If you need spare parts, we can supply for free or cost price, you pay express cost. |
|
Assignment of engineers and training |
we can supply manual book, work video, install video, pictures first, we can also assign our engineers to go abroad for installing or training machines for our users. |
