Products Description
The spring roll wrapper making machine can produce spring roll wrappers, curry cakes, egg wrappers and crepes with a thickness of 0.3-2.0 mm, and is widely used in food factories, hotels, fast food restaurants, etc.
Features
(1) Efficient production
High degree of automation, 300~3000 spring roll wrappers can be produced per hour (depending on the machine model).
(2) Adjustable thickness
The thickness of the dough can be adjusted (usually 0.3mm~2.0mm) to meet different taste requirements (such as crispy or soft and tough).
(3) Various heating methods
Electric heating (suitable for small restaurants)
Gas heating (suitable for large-scale production, faster heating)
Non-stick pan design (some high-end models use non-stick coating to reduce breakage rate)
(4) Material safety
The food contact part is made of 304 stainless steel, which meets food safety standards and is easy to clean and maintain.
Products Description

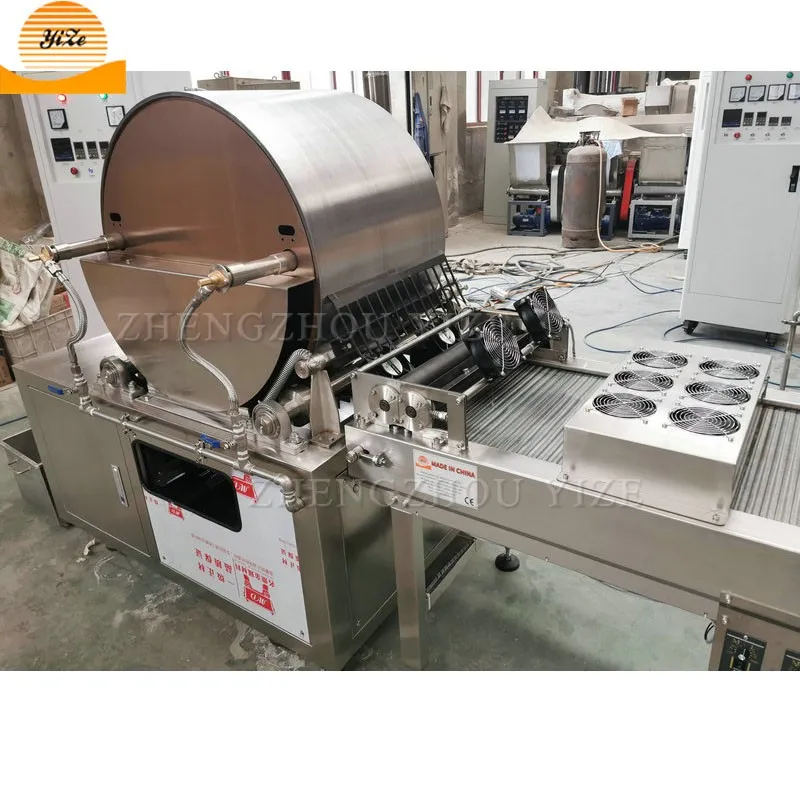

Machine introduction
Pulping Part
Mixer Power: 1.1kw
Mixer Speed: 131rev/min
Mixer Capacity: 25kg/time/15min
Feed-in Part (flour beater):Host Machine
Power:13.2KW
electricity or gas heating Part:
1.Heating barrel dimension:500mm
2. temperature control:0-400 centigrade
Cutting part:
Power:0.2KW
Convey Part
Power:0.55KW
Cooling Part
Main machine +the first conveyor
1. Pulping Part (Choose according to your requirements)
2. Feed-in Part
3.Host Machine
4. Heating Part
5. Cutting part (Rectangular Shape)
6. The first conveying part
Regarding the size of spring roll wrappers
Product Parameters
|
Model |
YZCJP-3620 |
YZCJP-5029 |
YZCJP-8045 |
YZCJP-12060 |
|
Dia. of heating cylinder |
360mm |
500mm |
800mm |
1200mm |
|
Size of machine( mm) |
4300*800*1350 |
4700*950*1580 |
5200*1000*1500 |
6200*1150*2000 |
|
Power |
Electric: 6.0KW |
Electric: 13.2KW |
Electric: 38KW |
Electric: 59KW |
|
Gas heating |
Gas heating |
Gas heating |
Gas heating |
|
|
Host Power |
0.75KW |
0.75KW |
0.75KW |
0.75KW |
|
Power Cutter |
0.55KW |
0.55KW |
0.55KW |
0.55KW |
|
Belt Power |
0.18KW |
0.55KW |
0.55KW |
0.55KW |
|
Voltage |
380V/220V |
380V/220V |
380V/220V |
380V/220V |
|
N. W. |
320kg |
800kg |
1000Kg |
1200Kg |
|
Size of the sheet |
Round: Φ180mm |
Round: Φ280mm |
round: Φ430mm, |
Round: Φ500mm |
|
Thickness of the sheet |
0.3-2.0mm |
0.3-2.0mm |
0.3-2.0mm |
0.3-2.0mm |
|
Production capacity |
According to the size: |
According to the size: |
According to the size: |
According to the size: |
Product Application
The final spring roll Products show :
