Products Description

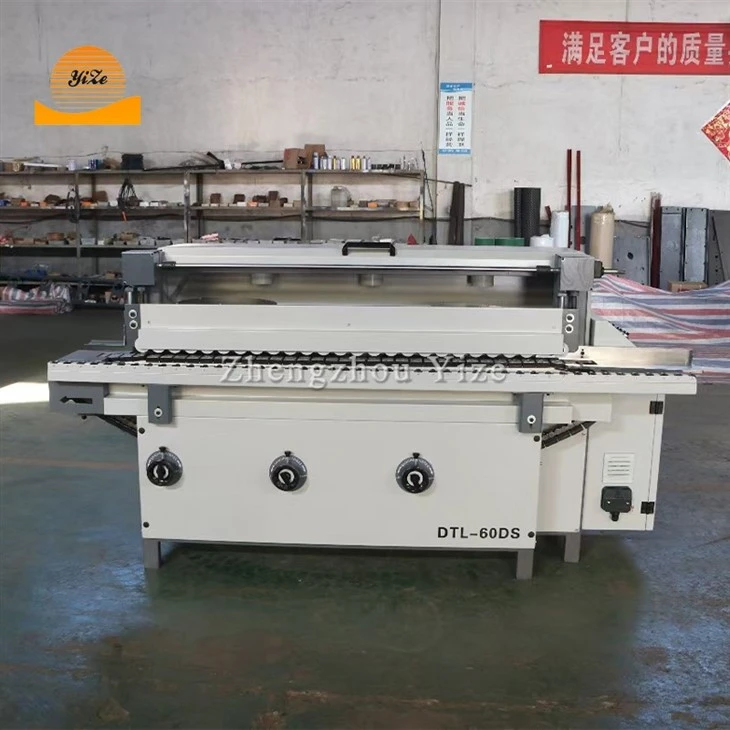

Fully Automatic Cabinet Door Sander
The quality cabinet door polishing machine directly determines the final surface texture and aesthetics of a cabinet product. It is a powerful tool for furniture manufacturers to enhance product competitiveness, achieve industrial upgrades, and reduce costs and increase efficiency.
Our Product Advantage
Automated
efficient
high-precision
Key Features and Advantages of Our Products
1. High Production Efficiency:
Automated continuous feeding allows for rapid sanding and uninterrupted operation, far exceeding manual efficiency and perfectly matching the pace of modern production lines.
2. Superior Sanding Consistency:
Controlled by precision machinery and a CNC system, each door panel is sanded with identical pressure, path, and results, completely eliminating the quality fluctuations caused by manual sanding fatigue.
3. Excellent Surface Finish:
Utilizing a combination of sanding heads, a step-by-step process from coarse to fine grit sanding belts thoroughly removes surface imperfections, burrs, and graininess, and fills wood pores, providing a flawless base for subsequent painting and laminating processes. This significantly improves paint adhesion and reduces paint usage.
4. Powerful Adaptability:
Profile Sanding: High-end models are equipped with a profile sanding head that automatically senses the contours of door panels (such as molded or carved wood doors) and adjusts accordingly, achieving uniform sanding of the entire three-dimensional surface.
5. Flexible Sanding Technology:
Utilizing airbag or brush-type sanding heads, the machine can better handle irregular surfaces and edges, avoiding over- or under-sanding.
6. Easily handles a variety of materials:
Including but not limited to common cabinet door materials such as MDF, particleboard, solid wood, UV board, and fire-resistant board.
7. Significantly Reduces Overall Costs:
Labor Savings: Only one operator is required for loading and unloading, significantly reducing reliance on skilled sanding workers.
Consumables Savings: Automated control eliminates unnecessary sanding belt waste.
Improves Product Yield: Extremely high consistency virtually eliminates scrap and rework caused by sanding errors.
8. Improves the Work Environment:
The machine features an enclosed or semi-enclosed design with an integrated central dust collection system, effectively collecting sanding dust to protect employee health and meet environmental requirements.
Hot Tags: fully automatic cabinet door sander, China fully automatic cabinet door sander manufacturers, suppliers
Product Parameters
|
Model |
UW-60DS |
|
Motion motor |
0.55kw-RV50/3 units |
|
Embroider and polisher motor |
0.75kw-Level 6/3 units |
|
Conveyor motor |
0.75kw |
|
Total motor capacity |
4.65kw |
|
Brush roller diameter |
Diameter 300mm Height 150mm |
|
Embroider and polisher speed |
VFD Speed Control |
|
Sponge roller diameter |
Diameter 180mm Height 150mm |
|
Working plate thickness (heightened) |
5-40mm |
|
Conveyor belt speed |
0-12m/min, VFD Speed Control |
|
Stretch film packaging dimensions |
2220x810x1260mm |
|
Net weight |
520kg |
|
Crate dimensions |
2300x910x1480mm |
Typical Machine Applications
Cabinet Door Panels: Sanding, primer sanding, and seal sanding of flat, molded, clad, and solid wood doors.
Wardrobe Door Panels: Surface treatment of large-format door panels.
Interior Door Panels: Surface finishing of room doors.
Furniture Panels: Sanding of various tables, chairs, and cabinet panels.
If you require other woodworking polishing and sanding equipment or other machinery, please contact us.
We will provide a comprehensive list of recommended finishes based on your production volume, cost, and other requirements.
It can also be customized according to specific needs
