sewing quilting machine introduction
Single needle quilting machine is a kind of equipment used for quilting home textile products such as quilts, mattresses, sleeping bags, etc.
It is mainly used to sew multiple layers of materials (such as fabric, filling and base fabric) together to form a quilted pattern. It is usually used to make quilts, mattresses, clothing, home decorations.
The single-needle quilting machine uses the needle to pierce the fabric and filling material, pass the suture through the two layers of material, and then the shuttle interweaves the suture under the fabric to form a stitch, thereby fixing the fabric and filling material together.
During the quilting process, the fabric and filling material are moved forward by the feeding mechanism at a certain stitch length and speed, and the machine needle quilts according to a preset pattern or straight line.
Features of sewing quilting machine
1. Quilting quilt thickness and needle-speed, pitch, patterns can be adjusted

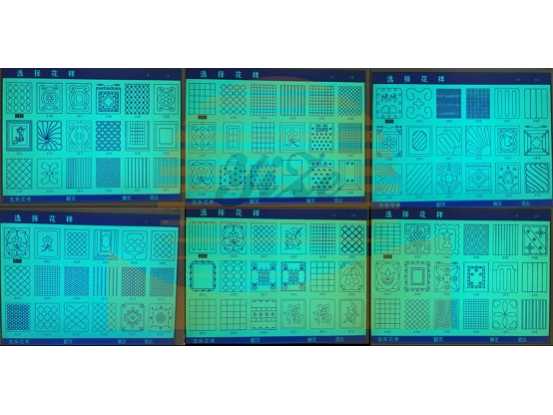

2. Flower store :about 340 patterns .

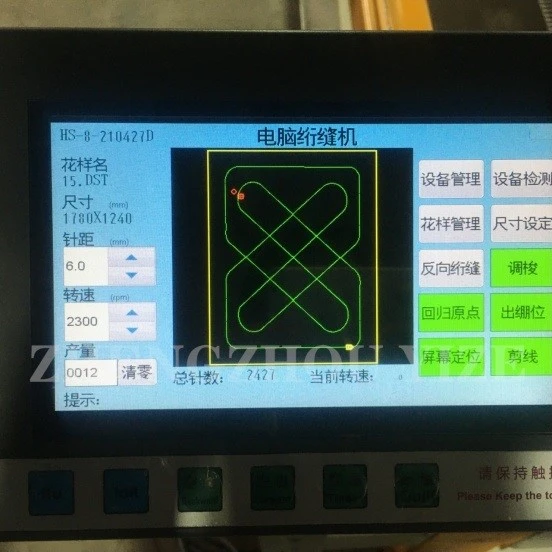

3. The information display function . the computer in English layout .
4. Adopt synchronous belt transmission .
5. Hook functions.
6. Automatic thread breakage detect .
7. The safety system test function .
8. Swing the needles are strengthening function.
9. Power off memory function.
Parameters of sewing quilting machine
|
Model |
YZ -22*24 |
YZ -24*26 |
YZ-26*28 |
YZ-28*30 |
|
Max.quilt size |
2.2*2.4m |
2.4*2.6m |
2.6*2.8m |
2.8*3.0m |
|
Max.Needle drop size |
2.0*2.3m |
2.2*2.4m |
2.4*2.6m |
2.6*2.8m |
|
Machine size |
3*3*1.4m |
3.2*3.2*1.4m |
3.4*3.4*1.4m |
3.6*3.6*1.4m |
|
Weight |
650-700kg |
700-750kg |
750-800kg |
800-850kg |
|
Power |
1.5kw, 220v, 50hz |
|||
|
Quilting thickness |
1200g-1500g/m2 |
|||
|
Sewing Speed |
300-2500RPM, Stitch length 2-10mm(Adjust) |
|||
|
Needle |
DP5 18~22# |
|||
|
We also accept customization according to your requirments |
||||

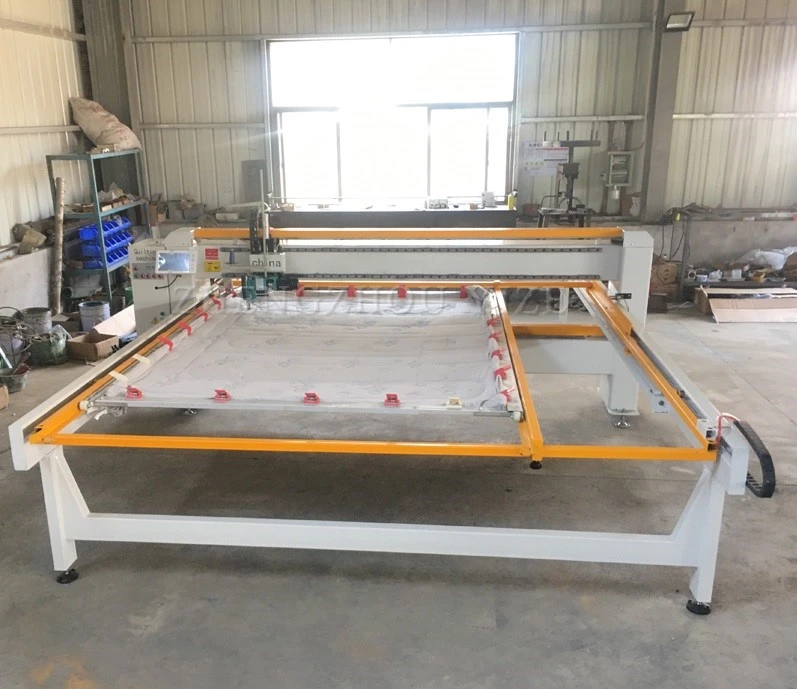

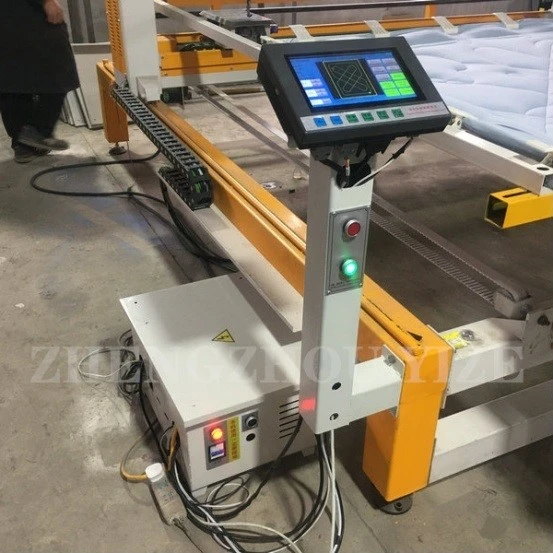

single needle quilting machine detail picture
Specific application of single needle quilting machine
- Quilt: Single-needle quilting machine can quilt between the fabric and the inner liner of the quilt to fix the filling materials such as cotton in a specific position
- Mattress: Quilting and fixing the fabric of the mattress and the internal springs, sponges and other materials
- Cotton-padded clothes, down jackets: Quilting between the fabric and the warm filling materials of cotton-padded clothes and down jackets
- Curtains: Quilting can be performed on the curtain fabric to produce various exquisite patterns and textures
- Sofa covers, chair covers: Quilting sofa covers and chair covers to prevent the fabric from easily deforming during use.
- Car seats: Single-needle quilting machines are used for quilting seat fabrics and filling materials such as sponges.
- Other parts of the car interior: such as the car's roof, door interiors, etc., can also be quilted and decorated by single-needle quilting machines

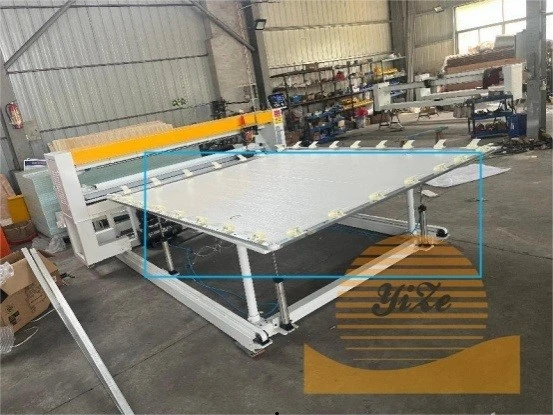

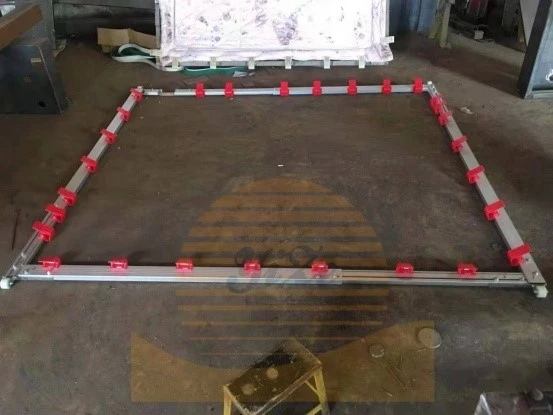

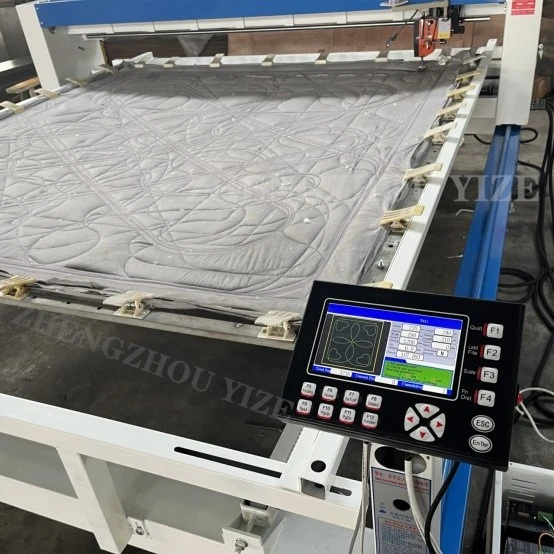

Display of single needle quilting machine
mattress quilting machine packaging
Standard wooden box
FAQ about mattress quilting machine
Q: What materials are suitable for long arm quilting machine?
A: Single needle quilting machines can handle a variety of materials, including:
Fabrics such as cotton, polyester, and silk.
Fillings such as down, cotton, and chemical fiber.
Special materials such as leather and synthetic leather.
Q: What are the advantages of slong arm quilting machine?
A: High precision: suitable for complex patterns and fine designs.
Flexibility: can handle a variety of materials and thicknesses.
Easy to operate: modern single needle quilting machines are usually equipped with computer control systems for simple operation.
High quality sewing: the stitches are even and firm.
Q: How to choose a suitable quilting sewing machine?
A: According to the purpose: choose a model suitable for home textiles, clothing, or industrial use.
According to the scale of production: manual or semi-automatic models can be selected for small-scale production, and fully automatic models can be selected for large-scale production.
According to the budget: computer-controlled models are more powerful, but the price is higher.
According to the thickness of the material: make sure the machine can handle the thickness of the required material.
Q: What patterns can be quilted by quilting sewing machine?
A: Geometric patterns (such as diamonds, squares).
Floral patterns.
Custom patterns (achieved through computer control systems).
Q: Types of our single needle quilting machines:
A: (1)basic 100LCD type
(2)Normal 120 LCF type
(3)Pneumatic lifting
(4)High speed servo motor type
(5)High speed servo motor with automatic thread cutting type
(6)New servo motor with automatic thread cutting type with automatic lift head
(7)Complete servo motor with automatic thread cutting type with automatic lift head
(8)New type servo zhengbu thread cutting type
(9)ZA type zhengbu thread cutting type with automatic lift head
(10)Top configuration flagship zhengbu type
(11)Ultra high speed zhengbu system type
(12)single needle continuous quilting machine
Our services
|
MOQ |
Usually 1 set, or based your order,Preferential wholesale price. |
|
Voltage |
110V /220V /380V /415V, 50/60 HZ Single/Three phase , Customize the voltage according to your local voltage. |
|
Guarantee |
Quality guarantee term is for one year, During guarantee period, free technical support and free spare parts supply. |
|
Payment term |
T/T, Credit card, Western Union, RMB , Alipay, Wechat, Cash, E-checking, MoneyGram, L/C, etc. |
|
Documents offer |
By express:express waybill |
|
By air:airway bill |
|
|
By sea:B/L, commercial invoice, packing list, sales contract, CO, FE, FTA or as your request. |
|
|
How to install and maintain the machine |
we can teach you install or maintain the machine by video, email ,pictures.....if large project , we can arrange our engineer help you to install or maintain it in your country. If you need spare parts, we can supply for free or cost price, you pay express cost. |
|
Assignment of engineers and training |
we can supply manual book, work video, install video, pictures first, we can also assign our engineers to go abroad for installing or training machines for our users. |
